Self Locking Metal Detectable Cable Ties , High Temperature Cable Ties UV Rated

Certification
Good quality Plastic Coated Stainless Steel Cable Ties for sales
Good quality Plastic Coated Stainless Steel Cable Ties for sales
Tkx u for your good quality and good service,we will do long business with your company.

—— Mr Ibrahim Al Talib

I'm Online Chat Now

Self Locking Metal Detectable Cable Ties , High Temperature Cable Ties UV Rated

China Self Locking Metal Detectable Cable Ties , High Temperature Cable Ties UV Rated supplier

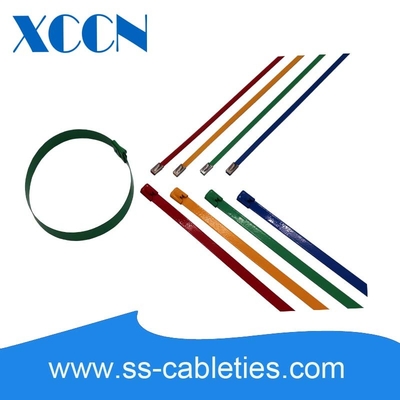

Large Image :  Self Locking Metal Detectable Cable Ties , High Temperature Cable Ties UV Rated

Product Details:

Place of Origin: China
Brand Name: XCCH
Certification: SGS,Rohs
Model Number: 10x0.25x450mm Coated stainless steel cable tie

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: 100pcs/bag
Delivery Time: 1-3days
Payment Terms: T/T
Supply Ability: 1000000pcs
Contact Now
Detailed Product Description
Structure Of Buckle: Ball-locking Material: Stainless Steel 316#
Color: Yellow System Of Certificate: ISO9001
Length: 450mm Width: 10mm
High Light:

stainless steel wire cable ties

,

metal detectable cable ties



10x0.25x450mm color customized fully coated Epoxy Polyester self-locking

plastic coated stainless steel cable ties



Description:

The epoxy coating provide additional surface protection. Prevent the corrosion between dissimilar material. The performance of corrosion resistant is better than the uncoated ties.

Choice of the color: Black, Red, Yellow, Blue, Green

Self-lock design is the most effective way of securing cables. The tail of the cable tie can go through the self-lock mechanism buckle easily and quickly, and locked tightly.

Width:4.6mm,7.9mm,10mm,12mm,16mm,19mm.

Length: Can be customized.

High tensile strength.

Non-flammable.

UV resistance.

High resistance to Acetic acid, Alkali acid, Sulphuric acid, Corrosion, etc. In general extremely resistant to most hostile environments.

Material:SS201,SS304,SS316.

Temperature range:-80℃ ~ 150℃ (-112℉ ~ 302℉).



Application Field:

Indoor , Outdoor, Heavy industrial area, Underground application, Marine, electric power facilities, Heavily polluted area ,etc.



Specifications:

ITEM NO. Length

Width

(mm)

MAX. BUNDLE DIA.(mm) TENSILE STRENGTH
W×T×L(mm) INCH MM LBS KGS
4.6×0.25×100 3.9 100 4.6 25 225 100
4.6×0.25×130 5.1 130 4.6 33 225 100
4.6×0.25×150 5.9 150 4.6 39 225 100
4.6×0.25×200 7.9 200 4.6 52 225 100
4.6×0.25×250 9.8 250 4.6 65 225 100
4.6×0.25×300 11.8 300 4.6 78 225 100
4.6×0.25×350 13.8 350 4.6 91 225 100
4.6×0.25×400 15.7 400 4.6 104 225 100
4.6×0.25×450 17.7 450 4.6 117 225 100
4.6×0.25×500 19.7 500 4.6 130 225 100
4.6×0.25×550 21.7 550 4.6 143 225 100
4.6×0.25×600 23.6 600 4.6 156 225 100
4.6×0.25×650 25.6 650 4.6 169 225 100
4.6×0.25×700 27.6 700 4.6 182 225 100
4.6×0.25×750 29.5 750 4.6 195 225 100
4.6×0.25×800 31.5 800 4.6 208 225 100
7.9×0.25×130 5.1 130 7.9 33 380 175
7.9×0.25×150 5.9 150 7.9 39 380 175
7.9×0.25×200 7.9 200 7.9 52 380 175
7.9×0.25×250 9.8 250 7.9 65 380 175
7.9×0.25×300 11.8 300 7.9 78 380 175
7.9×0.25×350 13.8 350 7.9 91 380 175
7.9×0.25×400 15.7 400 7.9 104 380 175
7.9×0.25×450 17.7 450 7.9 117 380 175
7.9×0.25×500 19.7 500 7.9 130 380 175
7.9×0.25×550 21.7 550 7.9 143 380 175
7.9×0.25×600 23.6 600 7.9 156 380 175
7.9×0.25×650 25.6 650 7.9 169 380 175
7.9×0.25×700 27.6 700 7.9 182 380 175
7.9×0.25×800 31.5 800 7.9 208 380 175
7.9×0.25×900 35.4 900 7.9 234 380 175
7.9×0.25×1000 39.4 1000 7.9 260 380 175
10×0.3×200 7.9 200 10 52 618 280
10×0.3×250 9.8 250 10 65 618 280
10×0.3×300 11.8 300 10 78 618 280
10×0.3×350 13.8 350 10 91 618 280
10×0.3×400 15.7 400 10 104 618 280
10×0.3×450 17.7 450 10 117 618 280
10×0.3×500 19.7 500 10 130 618 280
10×0.3×550 21.7 550 10 143 618 280
10×0.3×600 23.6 600 10 156 618 280
10×0.3×650 25.6 650 10 169 618 280
10×0.3×700 27.6 700 10 182 618 280
10×0.3×800 31.5 800 10 208 618 280
11.5×0.25×350 13.8 350 12 91 618 280
11.5×0.25×400 15.7 400 12 104 618 280
11.5×0.25×500 19.7 500 12 130 618 280
11.5×0.25×550 21.7 550 12 143 618 280
11.5×0.25×600 23.6 600 12 156 618 280
11.5×0.25×700 27.6 700 12 182 618 280
11.5×0.25×800 31.5 800 12 208 618 280
11.5×0.25×900 35.4 900 12 234 618 280
11.5×0.25×1000 39.4 1000 12 260 618 280
11.5×0.25×1100 43.3 1100 12 286 618 280
11.5×0.25×1200 47.2 1200 12 312 618 280
12×0.3×350 13.8 350 12 91 684 310
12×0.3×400 15.7 400 12 104 684 310
12×0.3×500 19.7 500 12 130 684 310
12×0.3×550 21.7 550 12 143 684 310
12×0.3×600 23.6 600 12 156 684 310
12×0.3×700 27.6 700 12 182 684 310
12×0.3×800 31.5 800 12 208 684 310
12×0.3×900 35.4 900 12 234 684 310
12×0.3×1000 39.4 1000 12 260 684 310
12×0.3×1100 43.3 1100 12 286 684 310
12×0.3×1200 47.2 1200 12 312 684 310
16×0.4×600 23.6 600 16 148 900 410
16×0.4×750 29.5 750 16 184 900 410
16×0.4×900 35.4 900 16 220 900 410
16×0.4×1100 43.3 1100 16 272 900 410
19×0.4×600 23.6 600 19 148 900 490
19×0.4×750 29.5 750 19 184 900 490
19×0.4×900 35.4 900 19 220 900 490
19×0.4×1100 43.3 1100 19 272 900 490





Self Locking Metal Detectable Cable Ties , High Temperature Cable Ties UV Rated
