20 Inch L Type Stainless Steel Cable Ties Heavy Duty Convienient Mounts

Certification
Good quality Plastic Coated Stainless Steel Cable Ties for sales
Good quality Plastic Coated Stainless Steel Cable Ties for sales
Tkx u for your good quality and good service,we will do long business with your company.

—— Mr Ibrahim Al Talib

I'm Online Chat Now

20 Inch L Type Stainless Steel Cable Ties Heavy Duty Convienient Mounts

China 20 Inch L Type Stainless Steel Cable Ties Heavy Duty Convienient Mounts supplier

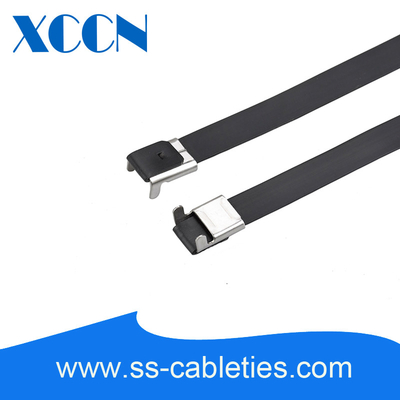

Large Image :  20 Inch L Type Stainless Steel Cable Ties Heavy Duty Convienient Mounts

Product Details:

Place of Origin: China
Brand Name: XCCH
Certification: Rohs,CE
Model Number: 9X400mm L type stainless steel cable ties

Payment & Shipping Terms:

Minimum Order Quantity: 20000pcs(Negotiable)
Price: Negotiation
Packaging Details: 100pcs/bag
Delivery Time: 10-15days
Payment Terms: T/T,Western Union
Supply Ability: 1000000pcs
Contact Now
Detailed Product Description
Name: Wing Type Stainless Steel Cable Ties Color Of Body: Black Color
Coating Material: PVC Flammbility: Fireproof
Thickness: 1.0mm Length: 400mm
High Light:

adjustable cable ties

,

coloured cable ties

9x400mm wing type L type stainless steel cable ties with black fireproof pvc coating



Description:

  • Strong,durable method of fastening and bundling.
  • The bundle diameter can be adjusted once we want to fasten the goods.
  • The additional wings can be bent over to increase the tensile strength.
  • Power solution to seal between the boot(hose) and transmission shaft.

Technical Information:

  • Material: Stainless steel 304#,316#
  • Coating material: PVC
  • Working temp:-40°to 85°
  • Structure of cable tie: black strap with metallic buckle
  • Flammability:fireproof
  • Material properties: UV-resistant, halogen free, non-toxic

Advantage of coating:

  • Softer and thicker PVC coating improve the additional edge protection and prevent corrosion between dissimilar metals.
  • High resistance to Acetic acid, Alkali acid,Sulphuric acid,Corrosion,etc, In general extremely resistant to most hostile environments.

Specification:



Item No. Thickness Max. Bundled Dia. Thickness Packing
inch mm inch mm mm Pcs/bag
9×300 11.81 300 2.36 60 1.0 100
9×400 15.75 400 3.62 92 1.0 100
9×500 19.69 500 4.88 124 1.0 100
9×600 23.62 600 6.14 156 1.0 100
9×700 27.56 700 7.4 188 1.0 100
9×800 31.5 800 8.66 220 1.0 100
9x1000 39.37 1000 11.18 284 1.0 100
11×300 11.81 300 2.36 60 1.0 100
11×400 15.75 400 3.62 92 1.0 100
11×500 19.69 500 4.88 124 1.0 100
11×600 23.62 600 6.14 156 1.0 100
11×700 27.56 700 7.4 188 1.0 100
11×800 31.5 800 8.66 220 1.0 100
11x1000 39.37 1000 11.18 284 1.0 100
11x1100 43.31 1100 12.30 313 1.0 100
11x1200 47.24 1200 13.7 348 1.0 100
13x300 11.81 300 2.36 60 1.2 100
13×400 15.75 400 3.62 92 1.2 100
13×500 19.69 500 4.88 124 1.2 100
13×600 23.62 600 6.14 156 1.2 100
13×700 27.56 700 7.4 188 1.2 100
13×800 31.5 800 8.66 220 1.2 100
13x1000 39.37 1000 11.18 284 1.2 100
13x1100 43.31 1100 12.30 313 1.2 100
13x1200 47.24 1200 13.7 348 1.2 100
16x300 11.81 300 2.36 60 1.2 100
16×400 15.75 400 3.62 92 1.2 100
16×500 19.69 500 4.88 124 1.2 100
16×600 23.62 600 6.14 156 1.2 100
16×700 27.56 700 7.4 188 1.2 100
16×800 31.5 800 8.66 220 1.2 100
16x1000 39.37 1000 11.18 284 1.2 100
16x1100 43.31 1100 12.30 313 1.2 100
16x1200 47.24 1200 13.7 348 1.2 100





20 Inch L Type Stainless Steel Cable Ties Heavy Duty Convienient Mounts
